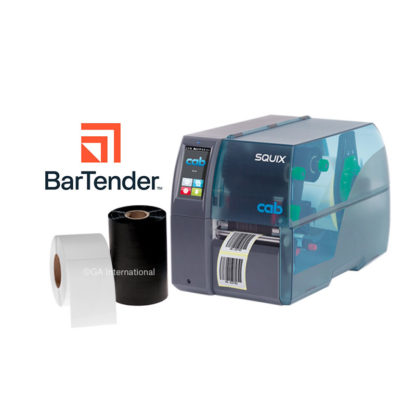

Cab SQUIX 4 M Thermal-Transfer – Direct Thermal Industrial Printing Kit
Printing Kit Includes:
Printer: cab SQUIX 4 M (Center Aligned)
Software: *BarTender Professional software (Workstation Edition)
Labels: 5,000 (1.5″ x 1″ or smaller)
Ribbon: Smudge-proof standard resin ribbon, 1476′
Printer Specifications:
Model: SQUIX 4 M (Center Aligned)
Print Method: Direct Thermal/Thermal-Transfer
Resolution: 600 dpi
Print speed up to: 11.8 in/s (6 in/sec, 600 dpi). 300 mm/s (150mm, 600 dpi)
Print width up to: 4.16″ (105.7 mm)
Labels Width: 0.157″ – 4.33″ (4 – 110 mm)
Labels Height: 0.157″ – 78.7″ (4 – 2,000 mm)
Labels Thickness: 0.002″ – 0.019″ (0.05 – 0.50 mm)
Liner material Width: 0.354″ – 4.49″ (9 – 114 mm)
Liner material Thickness: 0.001″ – 0.005″ (0.03 – 0.13 mm)
Roll Outer diameter: 8″ (205 mm)
Roll Core diameter: 1.5″ – 3.94″ (38.1 – 100 mm)
Interfaces: USB, Serial (RS232C), Ethernet 10/100
Software Features:
Automatically print from any Windows workstation or device connected to the same local area network (LAN), custom data-entry forms (CSV files, Excel, Excel Online, JSON, and Google Sheets databases), RFID encoding capabilities, exceptional design flexibility, designer typefaces, advanced text formatting, “Instant” barcodes, on-screen display, import and export graphics, customizable serialization, compliance Labels, password security, predefined “Toolbox” components, industrial symbols, customizing features, free technical support.
*The first year of Standard Maintenance and Support is free with every new purchase of BarTender. This gives access to:
- Software manufacturer’s live support (phone/chat) or email
- Free version updates
- Edition and printer upgrades
Please contact us for inquiries or maintenance agreement renewal information.
